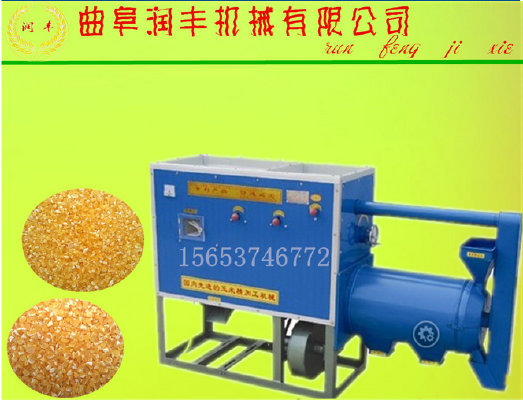

Small corn grain breaking machine

Machine cover made of cast iron is made, the shape of which is semicircular, with a feed port and a discharge port, above a hopper seat, Cereals, grains, is feed into the machine, in a feed inlet is arranged on the inserting plate, used to control the speed of the material and on the precision of the material plays an important role.

The knife has flat steel, installed in the upper cover and the lower seat, with adjustable device, used to adjust the clearance and drum knife. When the machine works, the main shaft belt pulley is driven by the power belt pulley, and the roller with the spiral groove is driven to rotate in a clockwise direction. Raw material from the hopper through the opening and closing of a feed inlet cover into the machine left, because the surface of the roller is provided with a spiral slot, material is to be transported to move to the right, in the drum is rotated at high speed under, chamber pressure in the material, forcing grain and the knife continuous contact friction and was stripped of the shell. At the same time, the main shaft belt wheel dynamic wind drum to rotate, grain processing after passing discharge port in the cleaning chamber were isolated. According to the different proportion of the material and the lighter husk in the drum wind suction, along the filtering sieve (tilt angle), slowly down, to complete the process of grain processing, and finally into the pre prepared containers.

This machine is a feed hopper, the body has three outlet, respectively, out of skin, Chu grain, come forward, side of the machine unwound peel corn, positive out skin, on the back of a rotten corn grain produces a surface removal in the peeling process.
